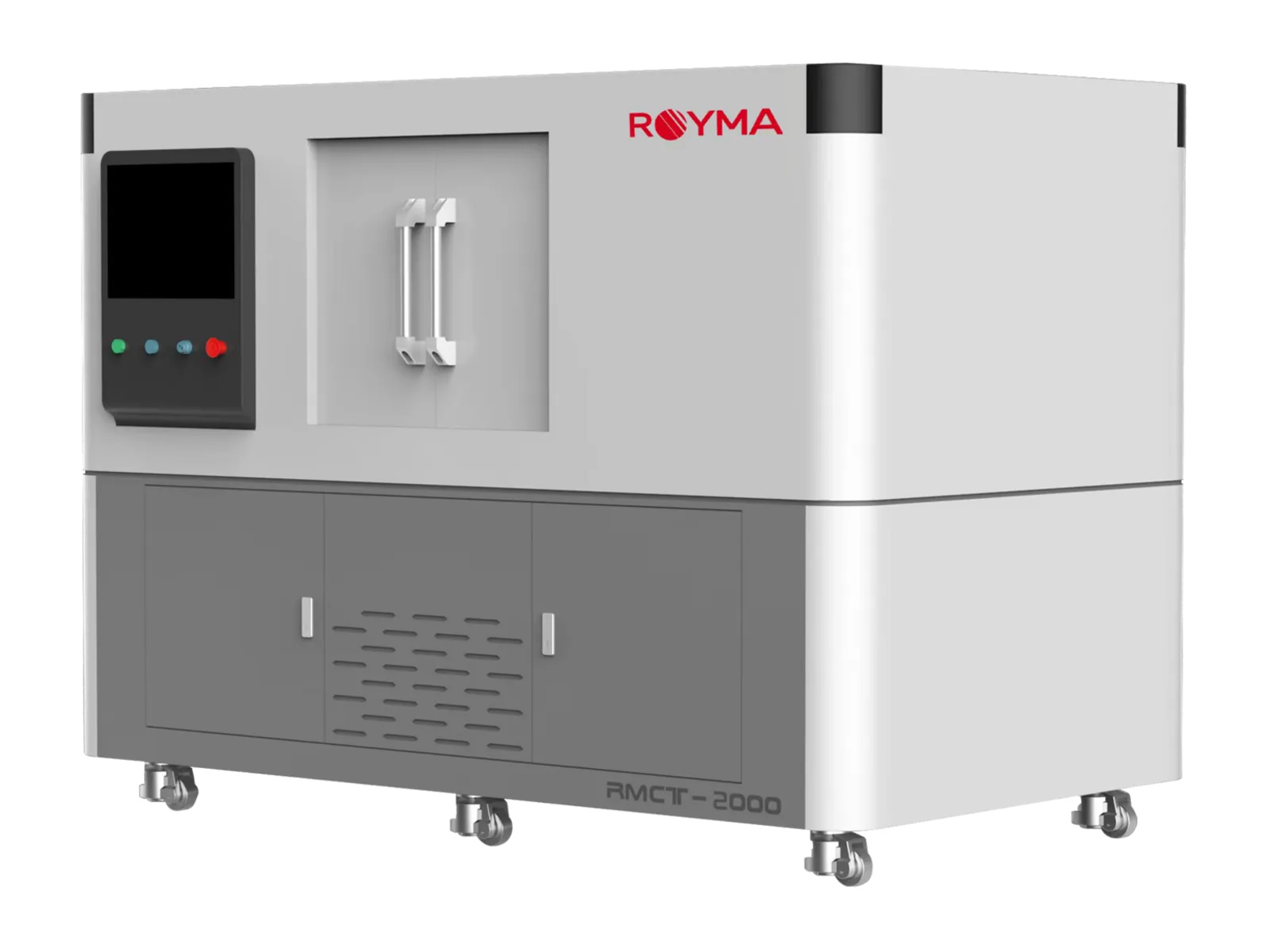

Horizontal CT
RMCT2000
Nanofocus and microfocus CT for small samples
- Spatial resolution, 190 kV nanofocus mode
- ≤ 0.9 µm
- Microfocus mode, 350 W
- 225 kV
- Sample size, microfocus mode
- ø 300 × 250 mm
- Density resolution, microfocus mode
- ≤ 0.5%
Overview
Sub-micron detail. One cabinet.
Particles, fibres, bond wires and solder joints need resolution below a micrometre. The RMCT2000 delivers it for small samples, in a cabinet that fits a laboratory.
Two configurations are available: a 190 kV nanofocus mode for the finest detail and a 225 kV microfocus mode for larger and denser samples.
The sample chamber is small by design. For parts above ø 300 × 250 mm, the RMCT4000 is the right system.
Features
Resolution first.
See below a micrometre
Resolve the smallest structures. The 190 kV nanofocus mode reaches a spatial resolution of 0.9 µm or better, on a detector with 49.5 µm pixels and 4608 × 5890 pixels.
Switch to more power
Scan larger and denser samples in the same family. The 225 kV microfocus mode works with 350 W and a JIMA resolution of 2 µm, for samples up to ø 300 × 250 mm and 15 kg.
Suppress artefacts
Choose the scan for the sample. Both modes offer circular and jitter scans on a granite main frame.
Versions
2 versions, one platform.
RMCT2000
The base version: 2D resolution 2.5 µm, 3D resolution 3 µm.
RMCT2000HR
The high-resolution version: 2D resolution 0.5 µm, 3D resolution 1 µm.
Specifications
Technical data.
| 190 kV nanofocus mode | |
|---|---|
| X-ray source | 190 kV, 50 W |
| Spatial resolution | ≤ 0.9 µm |
| Detector | 228 × 291 mm, 49.5 µm pixels, 4608 × 5890 |
| Sample | ø 200 × 225 mm maximum, ø 140 × 155 mm scannable, 5 kg |
| System | 2100 × 1200 × 1770 mm, 2.68 t |
| 225 kV microfocus mode | |
| X-ray source | 225 kV, 350 W, JIMA resolution 2 µm |
| Detector | Amorphous-silicon flat panel, 427 × 427 mm, 139 µm pixels, 3072 × 3072 |
| Sample | ø 300 × 250 mm, 15 kg |
| Density resolution | ≤ 0.5% |
| System | 2863 × 1226 × 2151 mm, 3.0 t |
| Both modes | |
| Scan modes | Circular, jitter |
| Main frame | Granite |
| Power | 220 V, 50 Hz, 7.5 kW |
| Radiation leakage | ≤ 1 µSv/h |
Applications
Where it is used.

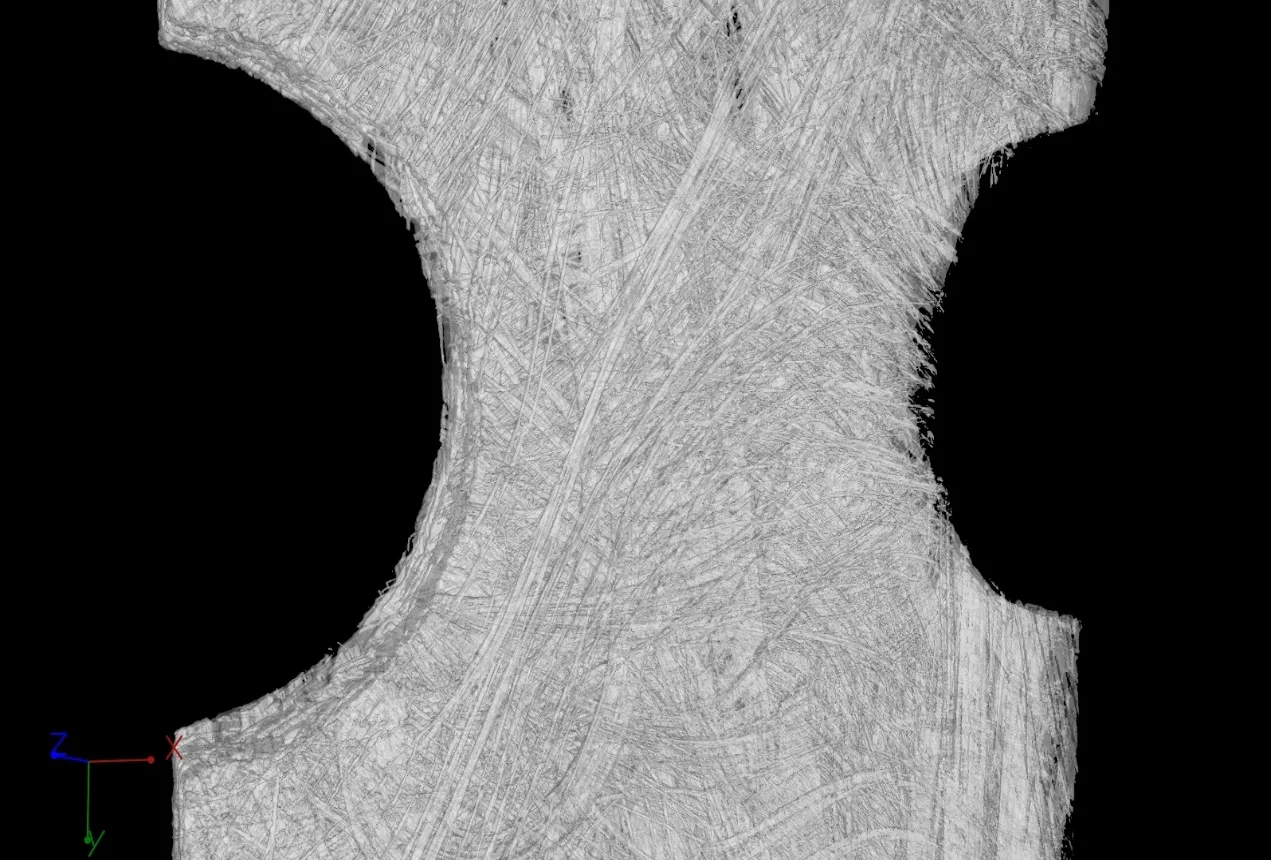

Particles, pores, fibre orientation, bond wires, solder joints and cracks in small samples.
