Inline CT.

Royma's Inline CT systems inspect every part at line speed and decide automatically. The part enters on a conveyor or by robot, is scanned in 3D, evaluated against the limits set for the part type and passed on with a pass or fail result and the measured values written to the part record. Where a laboratory CT answers a question about a sample, an inline CT answers it for the whole production.

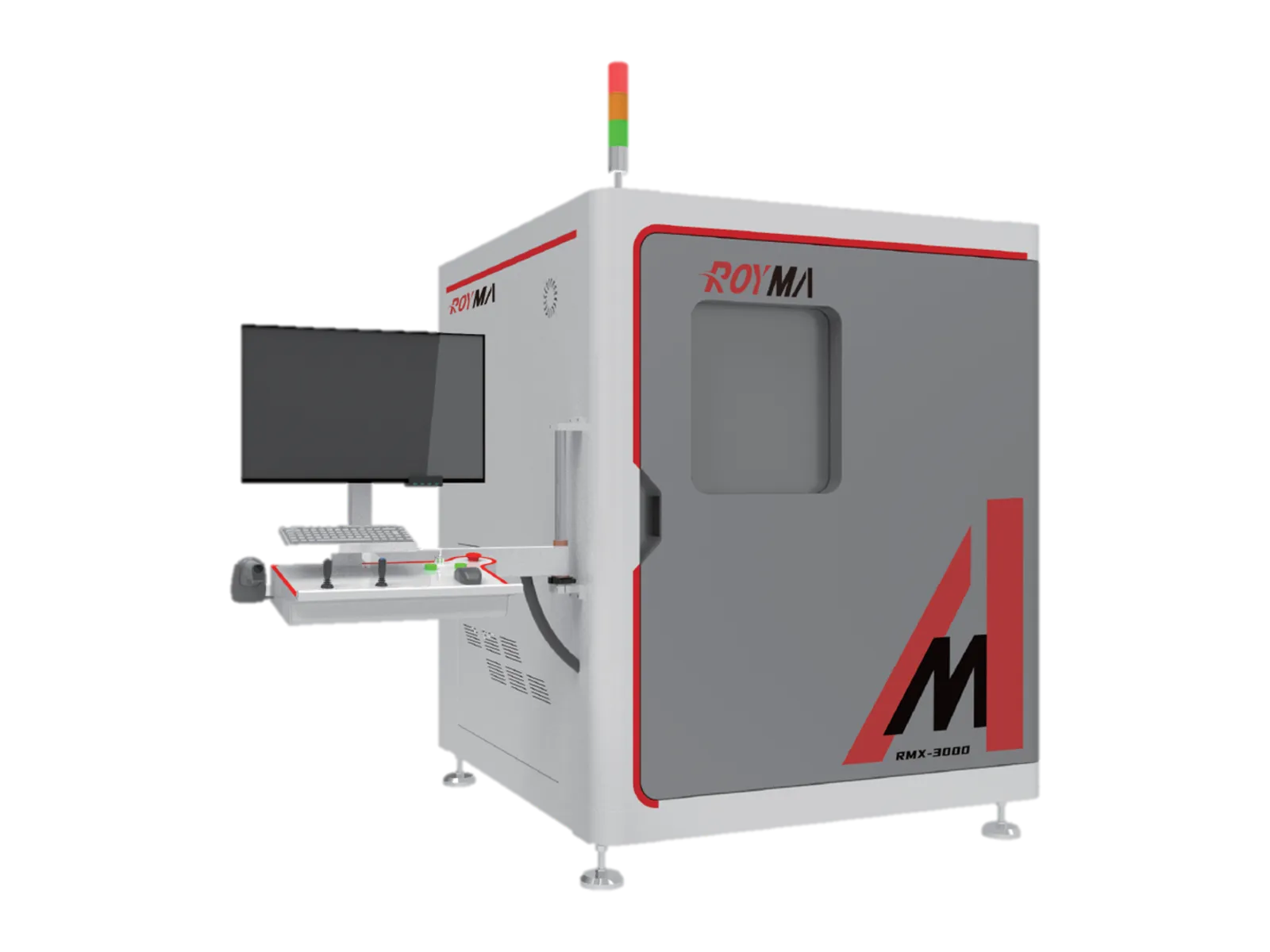

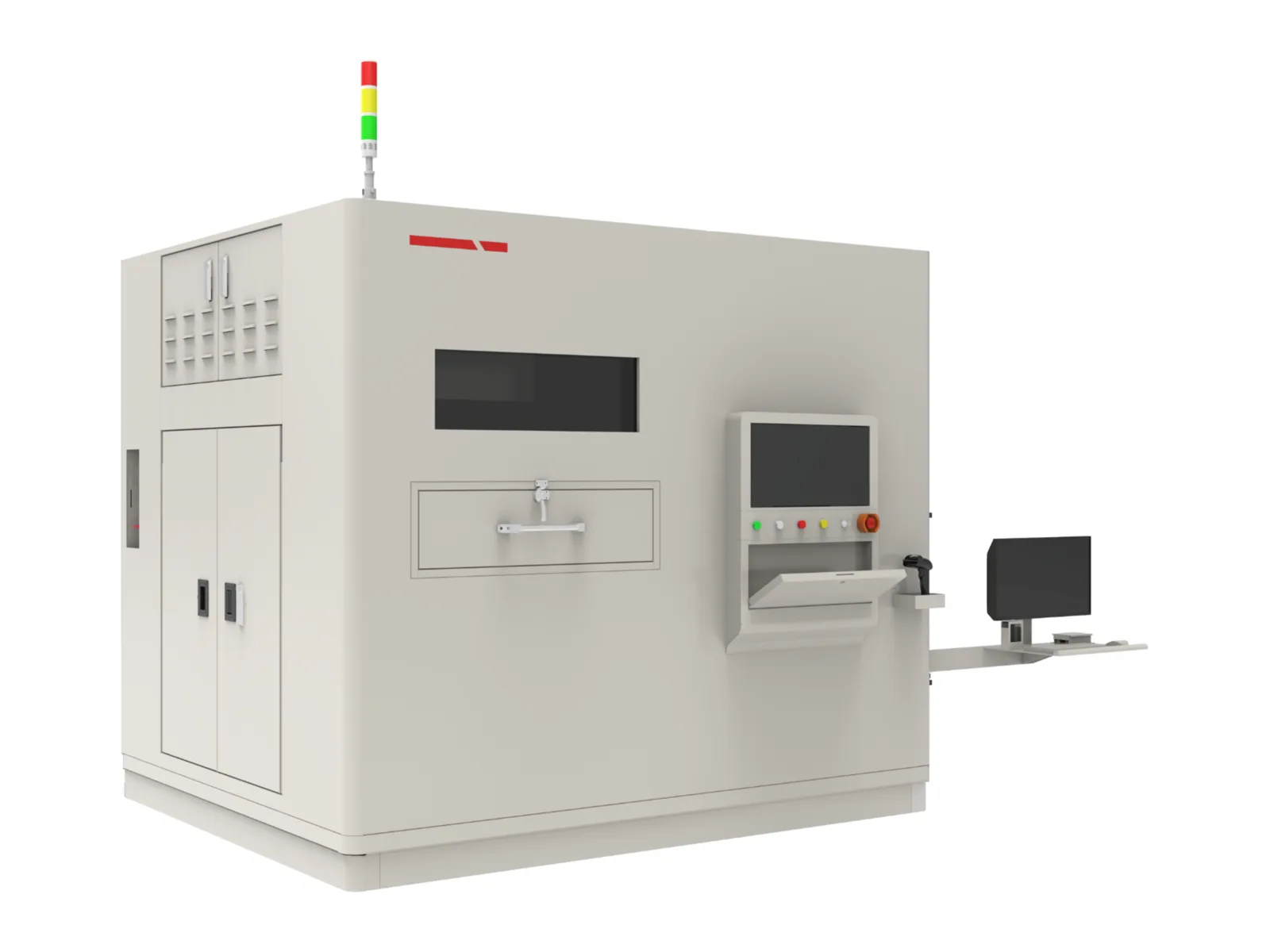

The RMLCT7500 inspects prismatic battery cells in the line: a corner scan of 2 to 6 corners in 4 to 8 seconds, resolution below 30 µm, cell thickness up to 55 mm, and a throughput of up to 36 cells per minute by number of gantry rings. The RMCLT1850 does the same for cylindrical and button cells, scanning six cells at once with a region-of-interest scan below 2.8 seconds. The RMCT7000 gantry CT and the Quick CT bring 3D inspection to the line for modules and manually loaded cells, and the planar systems RMX3000 and RMPCT5500 inspect boards inline layer by layer.

Choose Inline CT when a 100 % inspection replaces a sampling plan, when the result has to reach the line controller within the cycle, and when the defect hides between the layers of the part where a 2D image cannot separate it.
